Example 3
Type: Basic Notification
Department: Receivables (Customer)
Learning Objectives
Critical Date Calculation
This is the field where the time frame of priorities is set, as soon as the given date (e.g. two days before the due date) is reached, the task is shifted and shown as “critical”.
Additive Use Condition
There is the possibility to trigger (condition) several Workflows in regards to one record data (e.g. New Customer Workflow + Over Credit Limit Workflow), it is called an Additive Use Condition. This condition is checked continuously to make sure a Workflow is triggered. That is important due to the fact that there is the chance of an already existing Workflow of the same reference type.
Wild Card (Calculation)
Wild Cards of the arithmetic operation can be used to calculate a field value based on a new value (e.g. - 10%) and to compare it with another.
Business Process “Customer nearly over Credit Limit”
When customers have approached 90% of their balance, the accountant is notified by default in this matter. A notification will be sent out to warn the accountant concerning a potential violation of the customer’s credit limit.

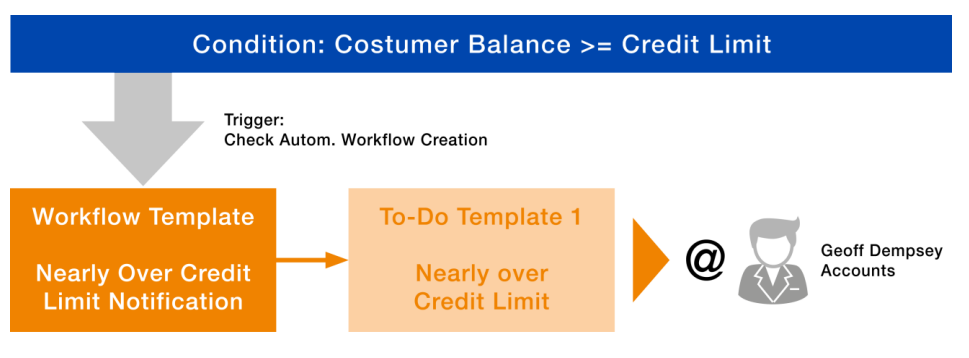

Aptean Advanced Workflow Diagram
Aptean Advanced Workflow Setup
Reference Type
No.: 18 (Customer)
Editing Page ID: 21 (Customer Card)
Buffer Time on Function Call Server: 30 Seconds
Automatic Workflows: Yes
Keyword Definition Lines
Tick all Use Fields
Table ID: 18
Tick all Use Fields
Keyword Definitions Line 1
Field ID: 1 (No.)
Keyword Definitions Line 2
Field ID: 2 (Name)
To-Do Templates
To-Do Template 1 | Reference Type No.: 18 (Customer) Code: WF030-TD010 Description: Customer nearly over Credit Limit |
---|---|
WHO | Employee Code: GD |
WHY | No Activation |
WHEN | Source Type: Workflow Duration Date Calculation: 7D Critical Date Calculation: -3D |
WHAT | Type: Manual Completion |
Workflow Template
Reference Type No.: 18 (Customer)
Code: WF030
Description: Nearly Over Credit Limit Notification
Use Condition: WF030-C010
Additional: Yes
Condition
Table ID: 18 (Customer)
Code: WF030-C010
Description: Nearly Over Credit Limit Notification
Type: Workflow Template Use
All Condition Lines
Active: Yes
Type: Field
Table ID: 18 (Customer)
Condition Line 1
Field ID: 20 (Credit Limit (LCY))
Filter: <>0
Condition Line 2
Field ID: 59 (Balance (LCY))
Wild Card Values
Wild Card No.: 1
Value Type: Calculation
Field Value Table ID: 18 (Customer)
Field Value Field ID: 20 (Credit Limit (LCY))
Calculation Formula Value: 0,9*%1 (show column)
Filter: >%1
Workflow Line 1
Type: To-Do
Code: WF030-TD010
