Example 18
Type: Recurring Notification
Department: Sales (Customer Ledger Entries)
Learning Objectives
Multi Line Examination:
A Workflow can be executed on a Master Table (Header Table) and is able to accomplish examinations through sub tables (Line Table). This e.g. helps to find out, if a particular amount out of all lines has been reached. For this purpose, setups conforming a FlowField are established. The possible options available are: Sum, Count, Exist, Minimum, Maximum and Average.
In this case we will use the option “Maximum”, in order to determine the latest date of a given record set.

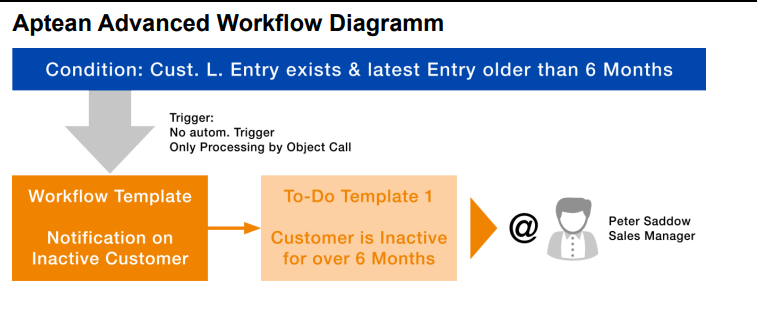

Business Process “Notification on Inactive Customer”:
The Sales Manager is to be notified, when a customer has made no turnover for more than half a year. Therefore it will be checked, if the customer has ledger entries at all. And if so, then it will be checked, if the latest of these ledger entries is older than half a year.
Aptean Advanced Workflow Setup
Reference Type
No.: 18 (Customer)
Editing Page ID: 21 (Customer Card)
Buffer Time on Function Call Server: 10 Seconds
Automatic Workflows: Yes
Keyword Definitions Line 1
Table ID: 18 (Customer)
Field ID: 1 (No.)
Tick all Use Fields
Keyword Definitions Line 2
Table ID: 18 (Customer)
Field ID: 2 (Name)
Tick all Use Fields
Table Join
Table ID: 18 (Customer)
Table ID to Join: 21 (Customer Ledger Entry)
Table Join Line 1
Field ID: 3 (Customer No.)
Value Type: Field
Value: 1 (No.)
To-do Templates
To-Do Template 1 | Reference Type No: 18 (Customer) Code: WF180-TD010 DescriptionCustomer Inactive for more than 6 Months |
---|---|
WHO | Employee Code: PS |
WHY | No Activation |
WHEN | Source Type: Workflow Duration Date Calculation: 1D |
WHAT | Type: Manual Completion |
Workflow Template
Reference Type No.: 18 (Customer)
Code: WF180
Description: Notification on Inactive Customer
Use Condition: WF180-C010
Additional: Yes
Condition
Table ID: 18 (Customer)
Code: WF180-C010
Description: Last Customer Ledger Entry older than 6 Months
Type: Workflow Template Use
All Condition Lines
Enabled: Yes
Type: Field
Table ID: 21 (Customer Ledger Entry)
Condition Line 1
Field ID: 1 (Entry No.)
Multi Line Check: Exist [eventually make column visible]
Filter: Yes
Condition Line 2
Field ID: 4 (Posting Date)
Wild Card Values
Wild Card No.: 1
Value Type: System Value
System Value: Workdate
Calculation Data Formula: -6M
Multi Line Check: Max
Filter: <%1
Workflow Line 1
Type: To-do
Code: WF180-TD010
Event Triggers [eventually make FastTab visible]
None [Uncheck all]
